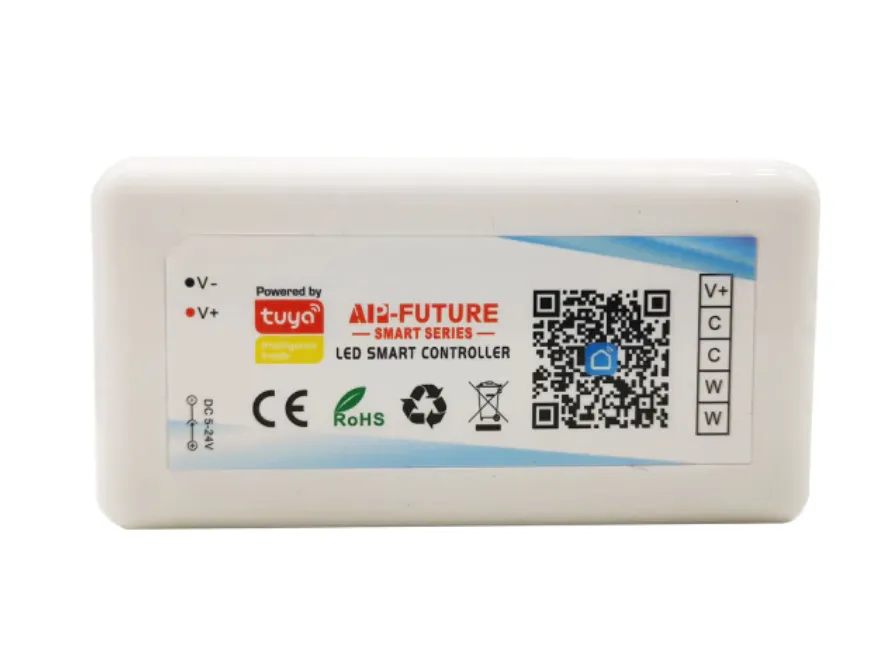

Tuya AP Future CCT LED Controller

General Notes

Tuya AP Future CCT LED Controller with a tywe3s chip.

Available on aliexpress from multiple vendors.

Other versions of this controller are available that do RGB, RGBW, RGBCW.

Flashed using the Digiblur Clamp method

GPIO Pinout

Pin	Function
GPIO5	Cold White Channel
CPIO13	Warm White Channel

Basic Configuration

https://github.com/esphome/devices.esphome.io/blob/main/src/docs/devices/Tuya-AP-Future-CCT/config.yaml

substitutions:
  device_name: led_strip
  device_description: CCT LED Strip.
  friendly_name: CCT LED strip

esphome:
  name: ${device_name}
  comment: ${device_description}

esp8266:
  board: esp01_1m

# Enable logging
logger:
  baudrate: 0 #Disable UART logging

# Device Specific Config

light:
  - platform: cwww
    name: "CCT Lights"
    cold_white: cold_white_channel
    warm_white: warm_white_channel
    cold_white_color_temperature: 6500 K
    warm_white_color_temperature: 2700 K

output:
  - platform: esp8266_pwm
    id: warm_white_channel
    pin: GPIO13
  - platform: esp8266_pwm
    id: cold_white_channel
    pin: GPIO5
